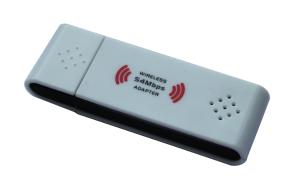

Ralink RT3072 2T2R 2.4GHz, ISM band USB 300Mbps Peak rate Wireless 54mbps Adapter

Ralink RT3072 2T2R 2.4GHz, ISM band USB 300Mbps Peak rate Wireless 54mbps Adapter

Ralink RT3072 2T2R 2.4GHz, ISM band USB 802.11b/g/n 300Mbps Peak rate

Specification:

Main Chipset Ralink RT3072

Host interface USB 2.0/1.1 Type A

LED Link/ Activity

Antennas PCB antennas or external antennas via I-PEX RF connector.

Antenna Impedance 50 ohm@2.4GHz

Operation Frequency 2412~2483.5 MHz

Typical Transmit Power
802.11b (CCK) 11Mbps: 19+/-1dBm
802.11g (OFDM) 54Mbps: 15+/-1dBm
802.11n (HT20@MCS7), 15+/-1dBm
802.11n (HT40@MCS7), 15+/-1dBm

Receive Sensitivity
802.11b: -88+/-1dBm
802.11g: -73+/-1dBm
802.11n (HT20), -70+/-1dBm
802.11n (HT40), -68+/-1dBm

Operation System WindowsCE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X

Security
WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i
Cisco CCS V1.0, 2.0 and V3.0 Compliant

Voltage Range/Current DC 5.0V ± 5% / <270mA

Operating Temperature 0°C - 50°C

Storage Temperature -20°C - 70°C

Operating Humidity RH 95% (Non-Condensing)

Storage Humidity RH 95% (Non-Condensing)

Physical Specification

Dimensions 56.5*17.5*4.6mm ; (41*17.5*4.6mm )

Weight 5.8g

Ralink RT3072 2T2R 2.4GHz, ISM band USB 300Mbps Peak rate Wireless 54mbps Adapter Images
